Smitsen KS14-D Tape Over Sew System (Sewing and Heat Sealing)

KS14-D is a high speed sewing and heat sealing system for use with paper bag with an inner PE liner bag or a PP bag with inner PE liner bag. Hot melt tape is added after sewing for a tight closure.

KS14-D Tape-Over-Sew Technical Specifications

How Does it work?

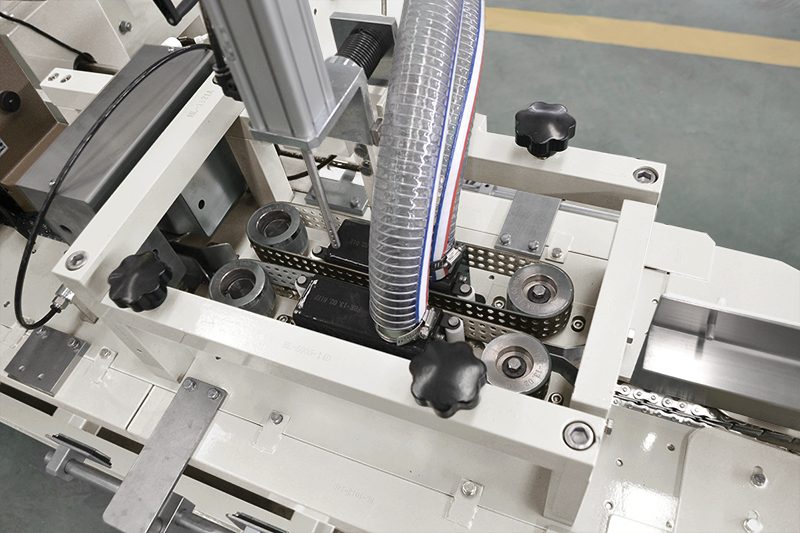

The bag mouth cleaning (optional) pulls the bag open with sucking air. A Cilinder comes down and sends a puff of air through the opening of the bag. The cutter then trims the top of the bag, You wil always get a  straight top and a perfect closure.
The sewing machine closes the bag for a strong connection.







The Hot melt adhesive tape is being applied to the top of the bag.
The inner PE bag is being closed with heath selling.

Sewing Heads to Choose from

  • Smitsen DS-7C Standard
  • Smitsen DS-11 Optional. Sewing head with Oil Tank and Double action power feeding rolls.

Bags:

  • Paper Bag with Inner PE bag and inner PP bags
  • Multi wall paper bag with inner PE liner
  • Multilayer Paper Bag (without liner)

Specifications

  • Sealing Speed: 7~10 meters per minute
  • Heating Block Power: 0.5 x 8 Kw
  • Sealing Machine Power: 0,55 Kw
  • Bag Mouth Clean Power (optional device): 1,5
  • Total Power:  6.5 Kw
  • Device Size: 3039 mm x 1090mm x 2052 mm
  • Netto Weight: 580 KG.
  • Head of Sewing Machine: DS-7C (standard) DS-11 (optional)
  • Sealing Height: 800~1700 mm (measured distance to the ground)
  • Sealing Temperature: 0~400 degree  celsius
  • Application: 4-layer flat Paperbag, Inner bag with PE film sealing, Outer sealing hot melt adhesive
  • Color: RAL 2018
