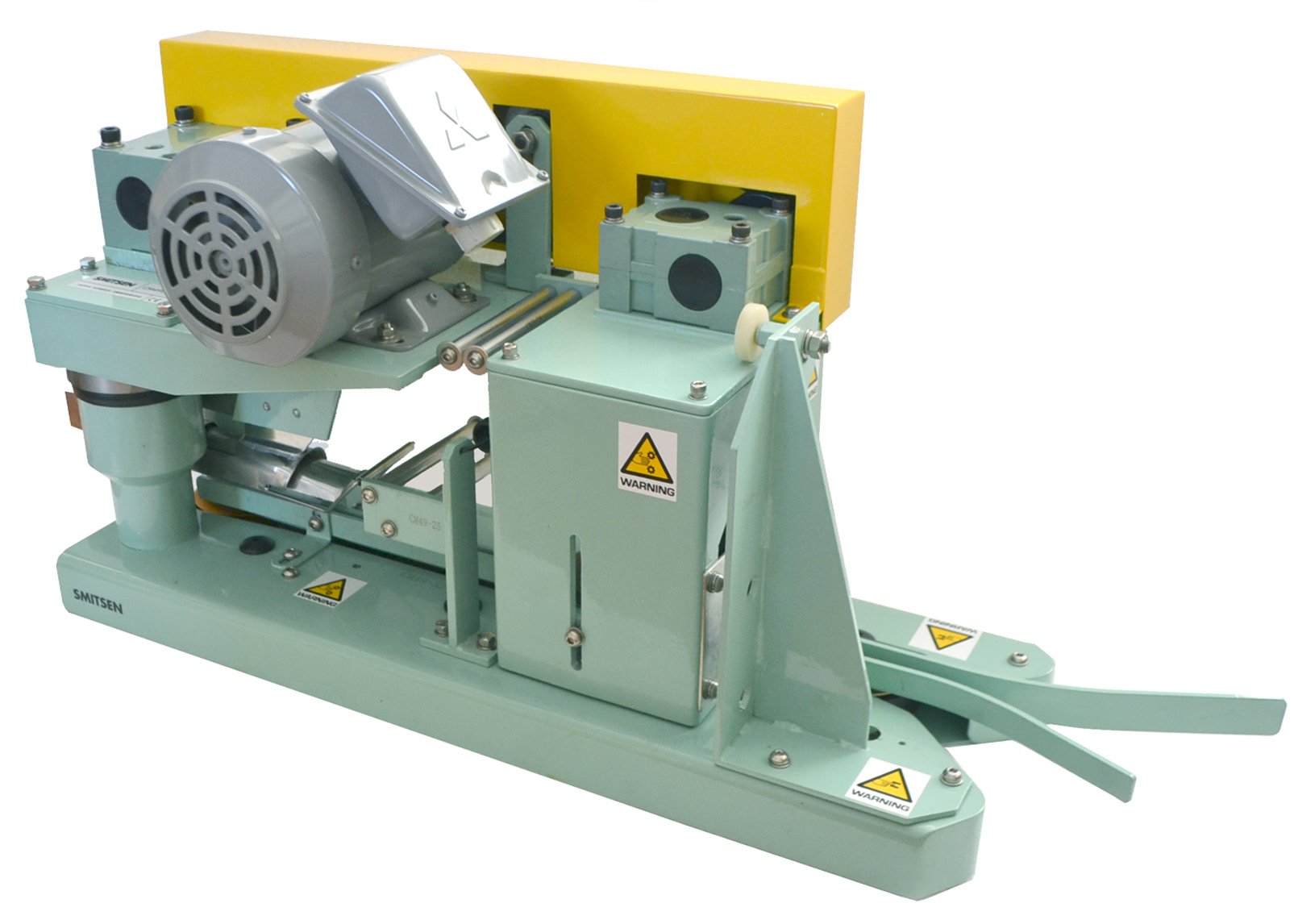

smitsen_cm4900-3

Cuts the bag, adds crepe tape, feeds to the sewing machine.
The Smitsen CM4900-3 is an automatic infeed device with bag top trimmer and Crepe Tape binder to add crepe tape to the bag. The Machine cuts the top of the bag and adds Crepe tape to the bag before sending it to the sewing machine to close the bag. The binders for the crepe tape currently are available in 60mm, 65mm, 70mm and 75 mm. The CM4900-3 is ideal for packing and presenting floor, pigments and powders in general. The crepe tape closure does not only looks good, it also reduces sifting of the product.



Mitsubishi_Electric_logo_tsubaki_logoThe smitsen CM4900-3 has 2 Tsubaki reducers and a 3-phase Mitshibushi motor preinstalled on the Smitsen CM4900-3 power device.



OPTIONS

  • Different colors available upon request
  • Stainless version available upon request
  • Crepe Tape binder available in 60mm (Standard), 65mm, 70mm and 75 mm

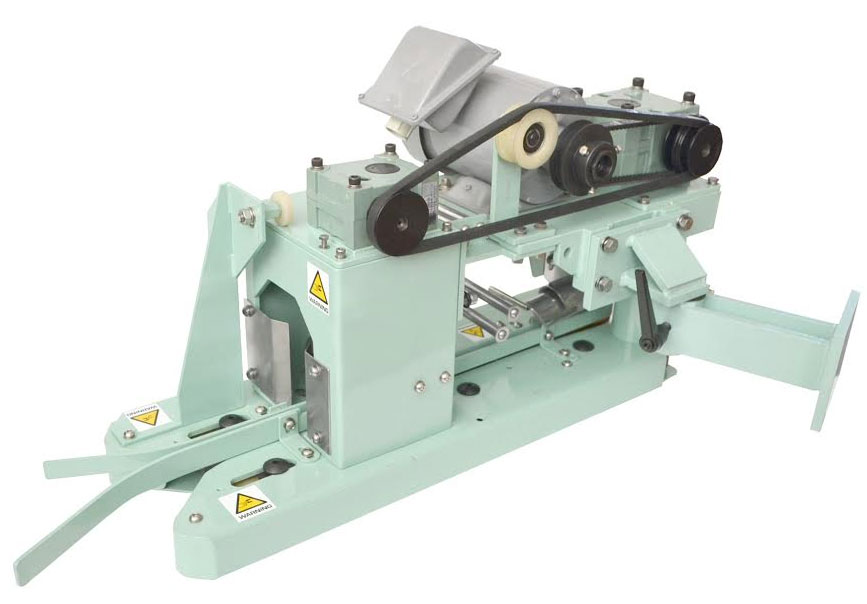

smitsen_cm4900-3_backside







2 Tsubaki gears are installed. 1 for driving the belts and 1 for driving the knives in the machine that cut the top of the bags.
